How do I re-align my QR code printer?
Broadlume BMS's (formerly RollMaster) recommended printer is the Zebra ZD220 203 dpi Barcode Printer, and we'll also include these compatible 2" x 2" Square Direct Thermal Labels.
Note 1: The following are instructions and will include screenshots for a Windows operating system.
Note 2: Your Broadlume BMS (formerly Rollmaster) menus may vary depending on permissions.

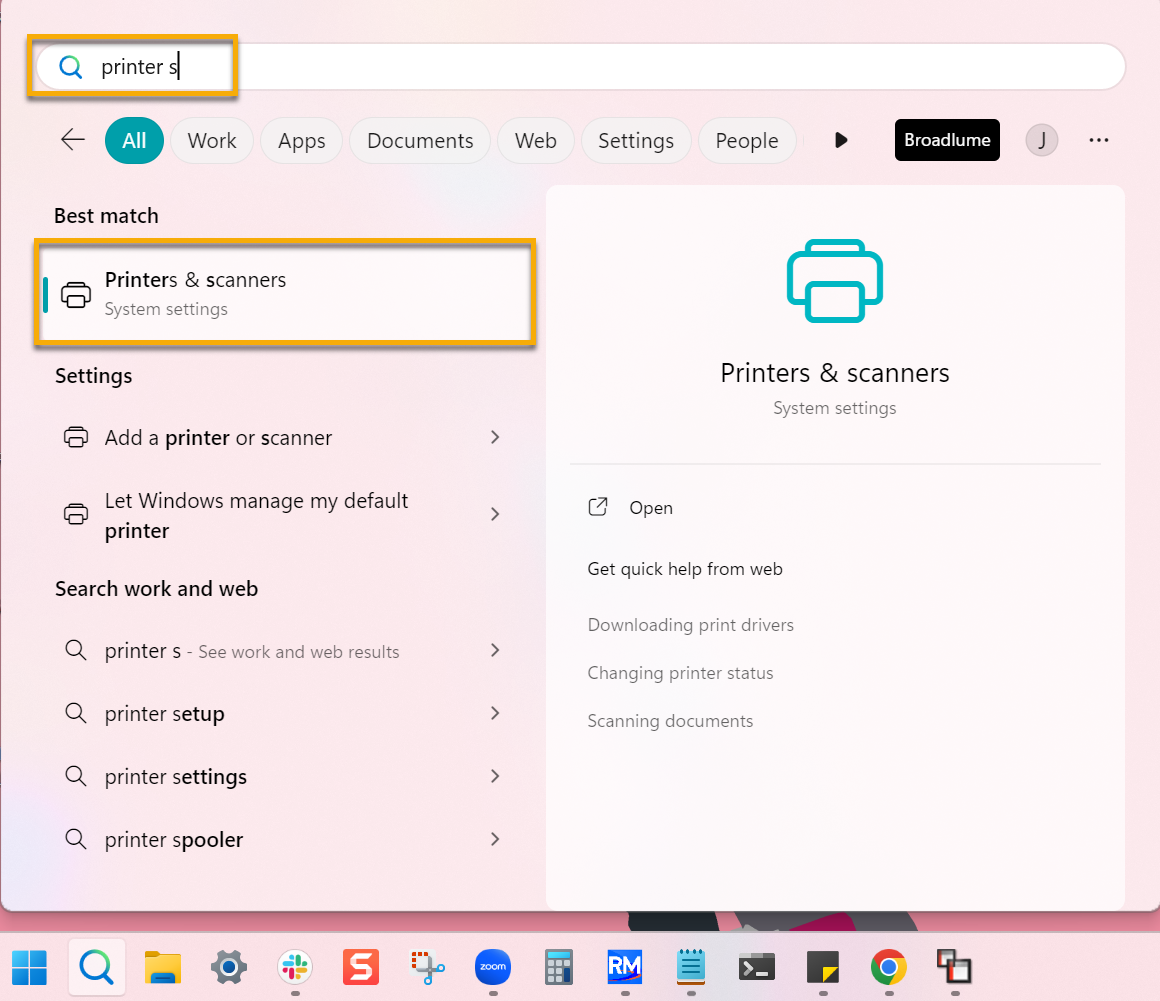

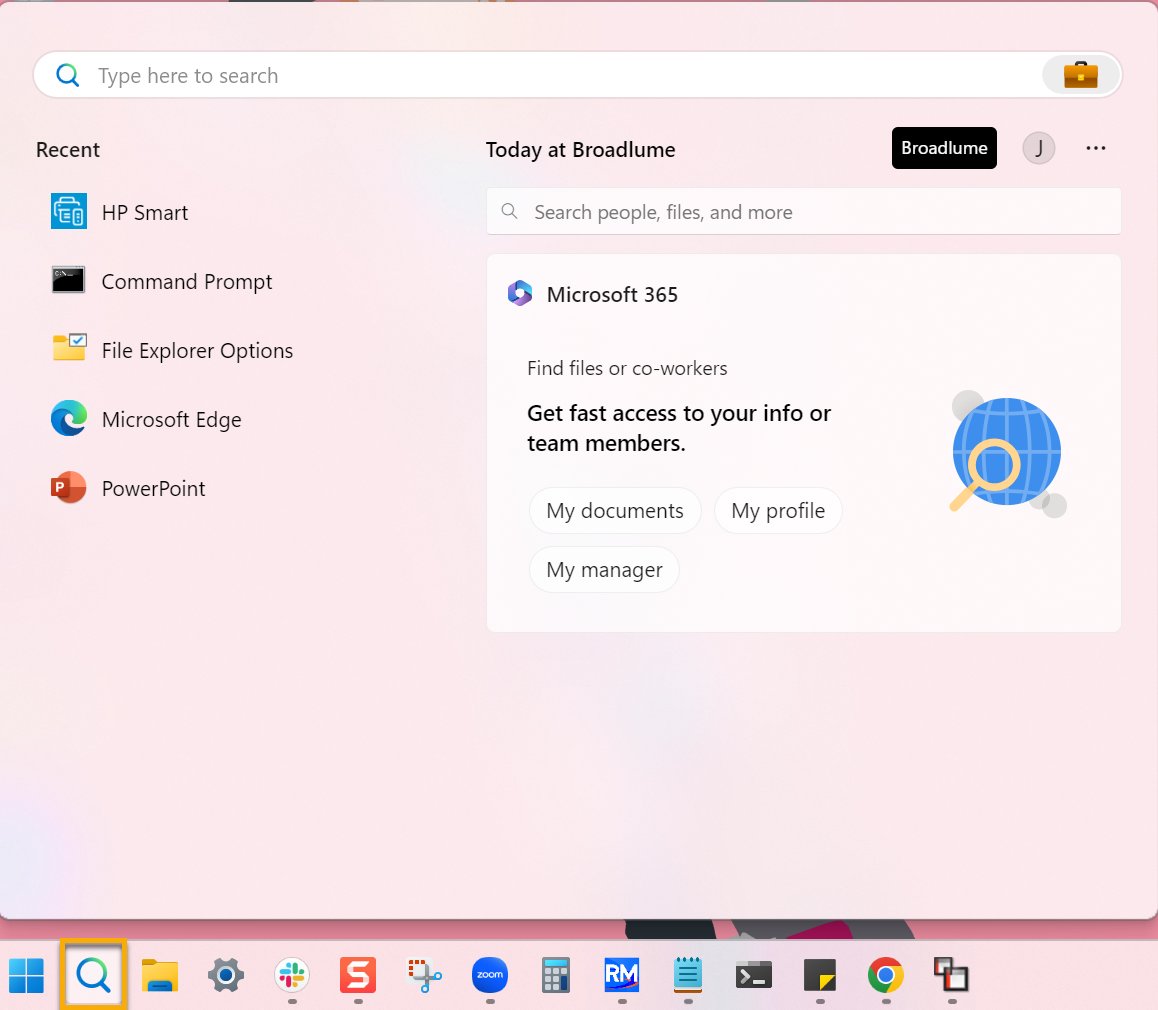

- Go to your computer's Task bar, choose the magnifying glass, and search for Printers & Scanners

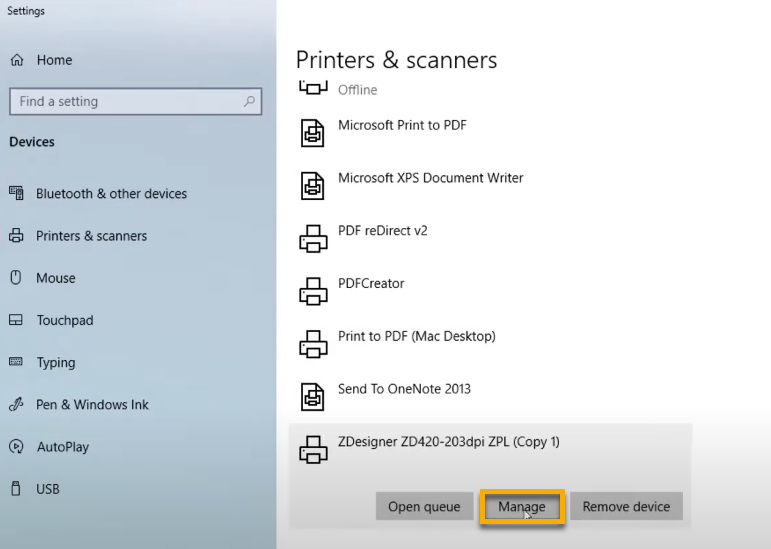

- Locate your QR code printer > choose Manage

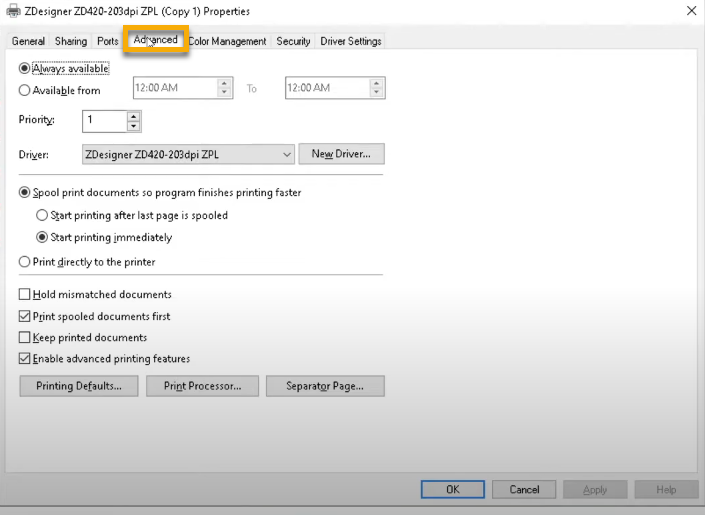

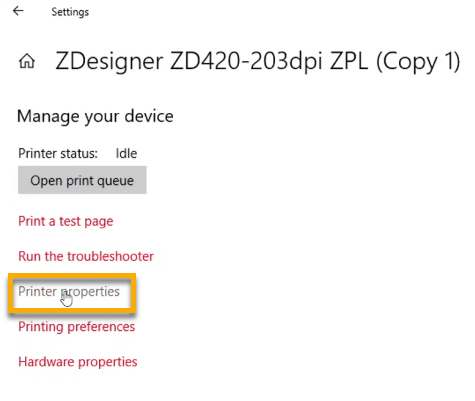

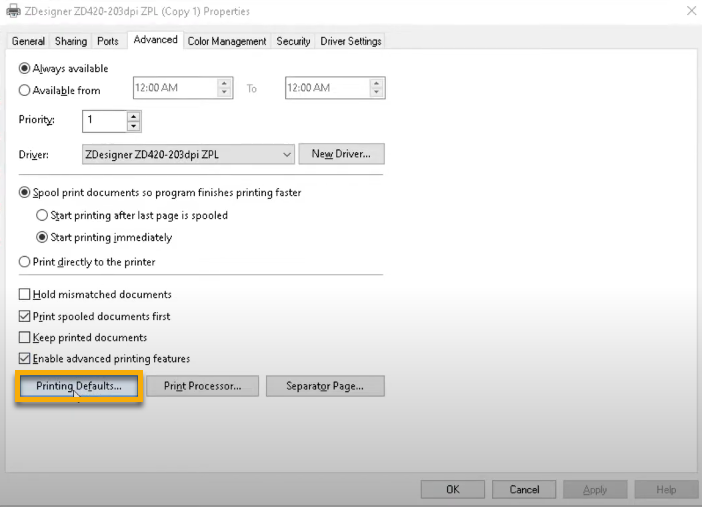

- Choose Manage Printer > Printer Properties > Advanced > Printer Defaults

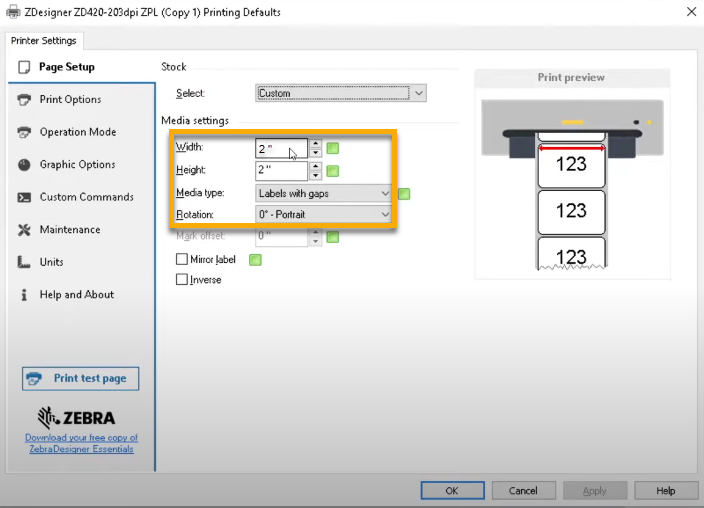

- Ensure the Width and Height = 2”
- Ensure the Media type is Labels with gaps
- Ensure the Rotation is 0* - Portrait
- Select Apply > Okay

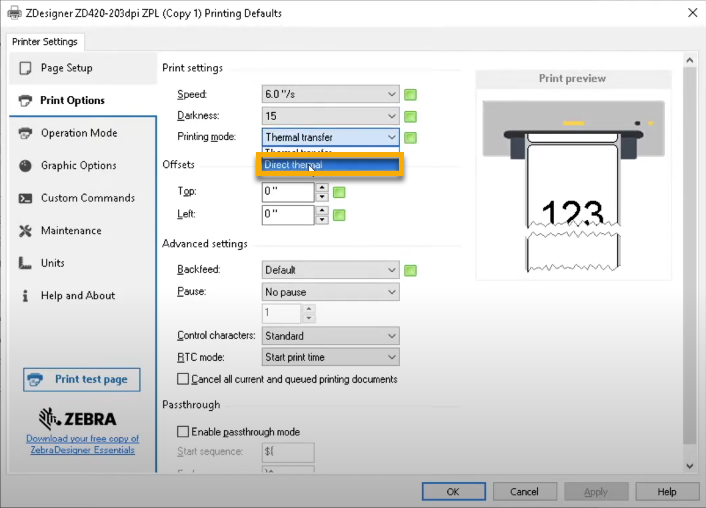

- Choose Print Options > Printing Mode
- Ensure Direct Thermal is selected > Choose Apply > Okay > Okay

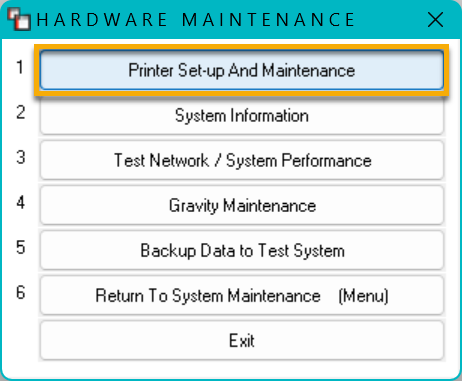

- Open Broadlume BMS > System Maintenance > Hardware Maintenance > Printer Setup & Maintenance
- Ensure Foxit is installed

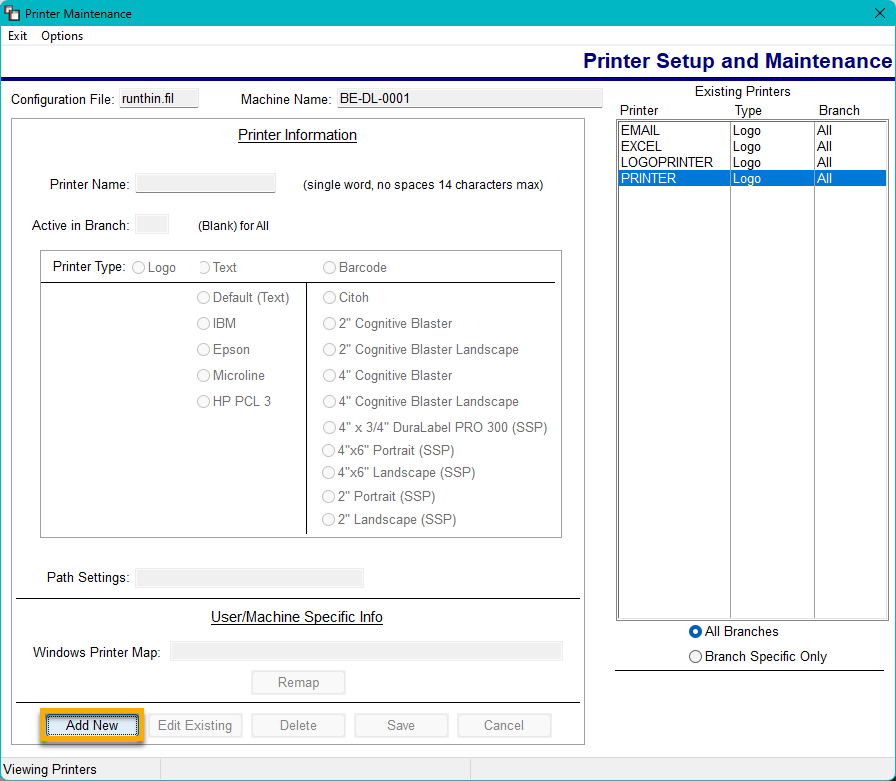

- Choose the Add New button

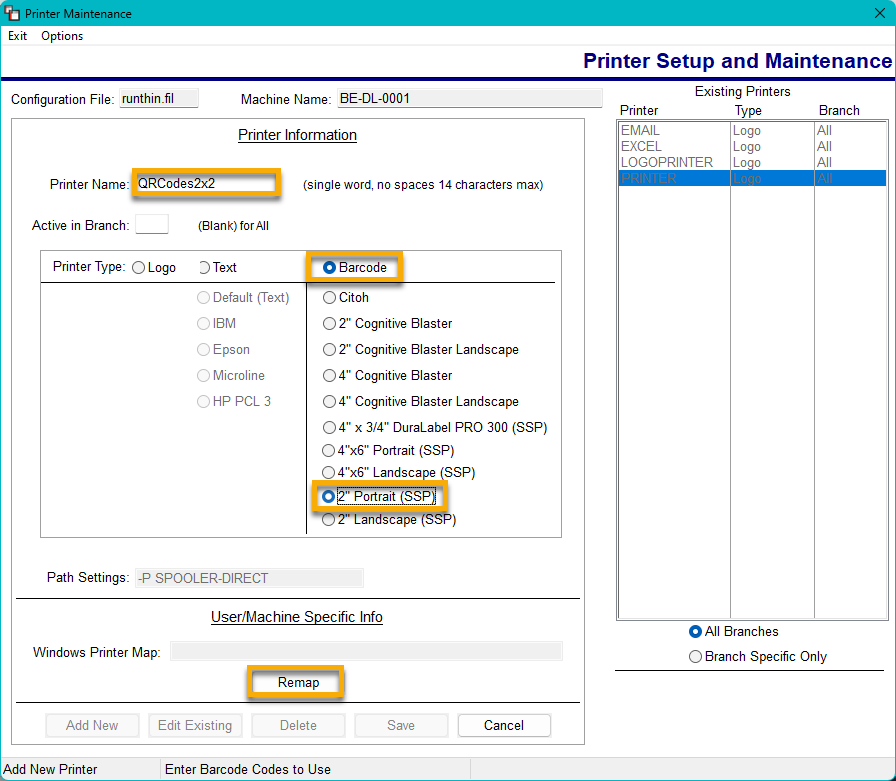

- We recommend naming the printer “QRCodes2x2” or similar for easy reference in the Printer Name field, then select Barcode Printer for the Printer Type and the 2" Portrait Radio button

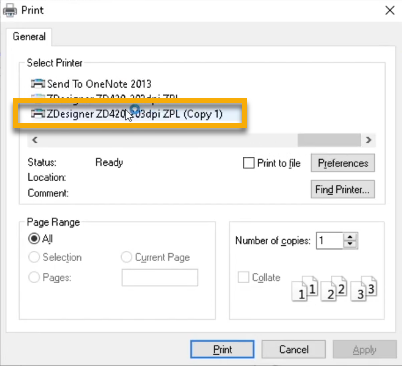

- Choose the name of your QR Code Printer by hitting Remap > Print
- Hit Apply > Save
- Log out of the system and then back in to complete the changes
Troubleshooting
If you are having trouble with your printer printing unnecessary extra labels, you will want to uninstall and reinstall the printer. You will need to confirm that you are installing the proper drivers for your printer. If you are using a Zebra printer, you can find the drivers downloads for your model of printer at zebra.com.
