Applies to: RollMaster (RM) Core
Covers adding a new printer to your RollMaster software
System Maintenance >Hardware Maintenance > Printer Set-Up And Maintenance
Please click here for a video on Adding a Printer.

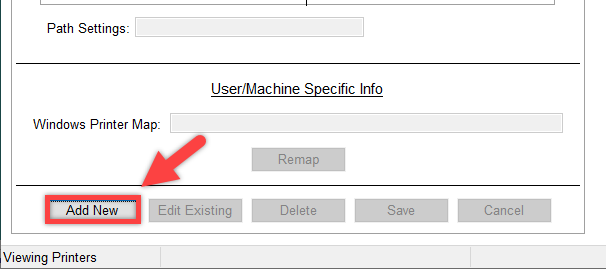

Select Printer Set-up and Maintenance. In the lower-left corner of the screen, choose Add New.
In the box labeled Printer Name, assign the new printer a name.
Note: please use a single word - with no spaces - and a maximum of 14 characters or less.
Choose a Branch to make the printer active using the box labeled Active in Branch. Or alternatively, you may leave the box blank to make the printer active in All Branches.

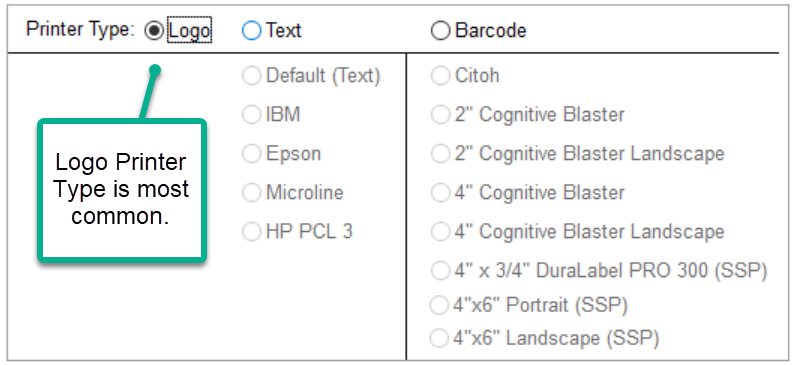

Next, choose a Printer Type. Most of the time, the printer will fall under the Logo category.
Near the bottom of the screen, click Remap to select the printer from your PC.

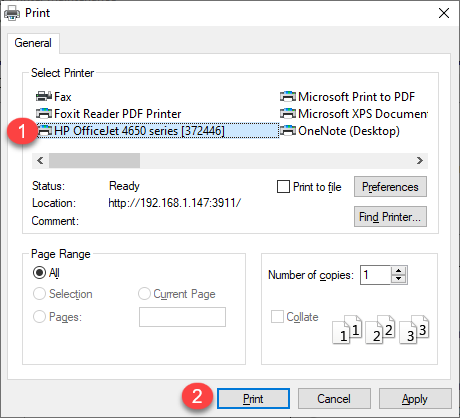

This will open a list of installed printers available from your machine.
Note: the printer should already be set up and active on your PC to Remap in BMS.
From here, you will select the new printer. Highlight the printer of your choice and hit the Print button.
Under User/Machine Specific Info, your printer name will list under "Windows Printer Map."
Last, click Save to keep the changes. At this point, you'll need to log out of RollMaster and log in fresh to see the changes. Once you log back in, you should see the newly added printer from your system's various "Select Printer" windows.
You can click here for a related video on Remapping a Printer.
